Model

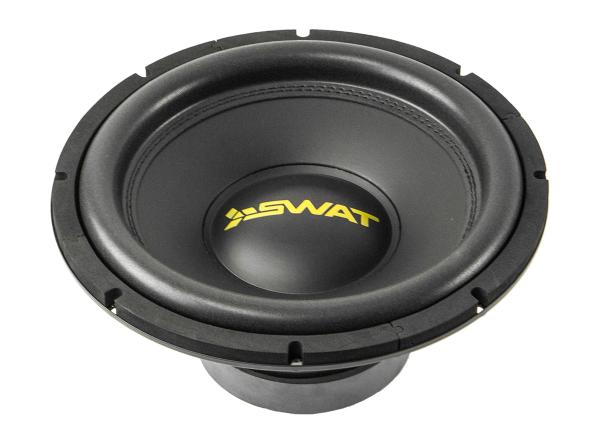

SWAT MAS 12
Rating
DIAM
12"
FS(Hz)
36.2
VAS(l)
38.9
QTS
0.68
PWR(W)
0
SPL(dB)
86.5
IMP(Ohm)
4x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
36.2
Vas(l)
38.9
Qts
0.683
Qms
0
Qes
0
Bl(Tm)
12.9
Mms(gr)
170
Cms(mm/N)
0.114
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
3.3
Sd(sq.mm)
49100
Vd(l)
0.687
X-max(mm)
14
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
0
RMS Power(W.)
300
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.28
Sensitivity(dB) 1-W
86.5
Sensitivity(dB) 2.8-V
85.9
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
282
Mounting Depth (mm)
136
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
