Model

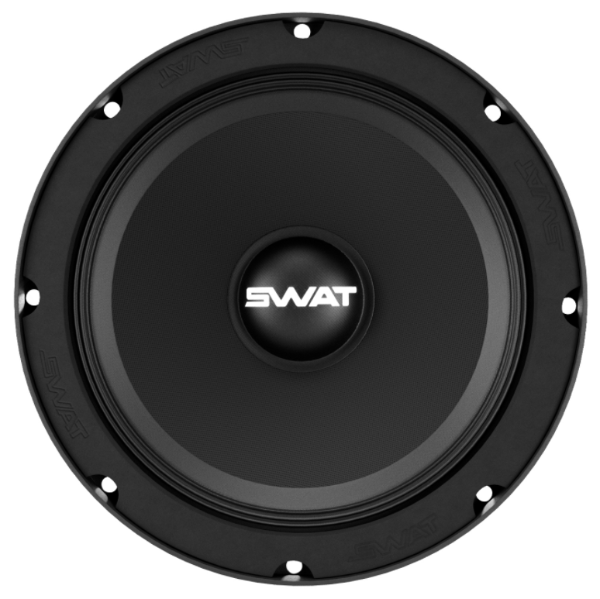

SWAT PRO-6N
Rating
Attention! Parameters of that speaker were not checked: a source of data, manual were not found.
DIAM
6"
FS(Hz)
104.4
VAS(l)
6.3
QTS
0.23
PWR(W)
400
SPL(dB)
96.8
IMP(Ohm)
4x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
104.4
Vas(l)
6.3
Qts
0.225
Qms
0
Qes
0
Bl(Tm)
8
Mms(gr)
7
Cms(mm/N)
0.31
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
0
Sd(sq.mm)
0
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0
General Parameters
Diameter (inch)
6
Max Power(W.)
400
RMS Power(W.)
150
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
3.02
Sensitivity(dB) 1-W
96.8
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
165
Cutout Diameter (mm)
145
Mounting Depth (mm)
65
Magnet Diameter (mm)
55
Optimum Enclosures
Enclosures
Vented, BP6
