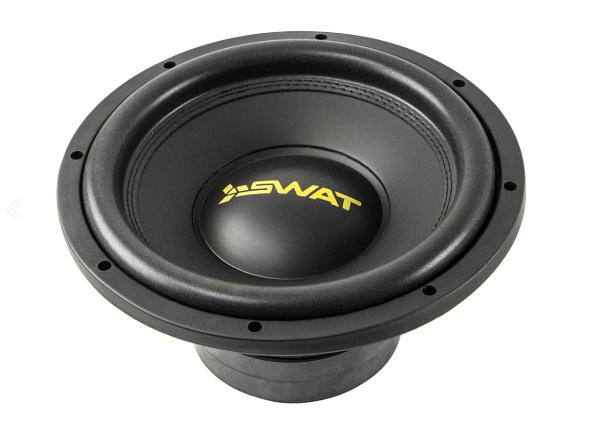

SWAT REV-10D2
SWAT REV-10D2
Model

SWAT REV-10D2

Rating
DIAM
10"
FS(Hz)
38
VAS(l)
18
QTS
0.5
PWR(W)
900
SPL(dB)
84.4
IMP(Ohm)
2x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.

Thiele-Small Parameters

Fs(Hz)
38
Vas(l)
18
Qts
0.5
Qms
6.3
Qes
0.543
Bl(Tm)
15
Mms(gr)
157
Cms(mm/N)
0.112
Rms(kg/s)
5.93
Le(mH)
0
Re(Ohm)
3.3
Sd(sq.mm)
33700
Vd(l)
0.539
X-max(mm)
16
X-mech(mm)
0

General Parameters

Diameter (inch)
10
Max Power(W.)
900
RMS Power(W.)
450
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.18
Sensitivity(dB) 1-W
84.4
Sensitivity(dB) 2.8-V
88.3

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
236
Mounting Depth (mm)
131
Magnet Diameter (mm)
0

Optimum Enclosures

Enclosures
Closed, Vented, BP4, BP6

Speaker response
