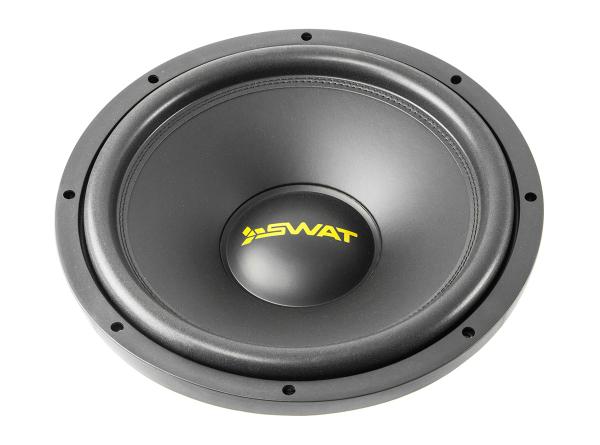

SWAT REV-15
SWAT REV-15
Model

SWAT REV-15

Rating
DIAM
15"
FS(Hz)
34
VAS(l)
80
QTS
0.71
PWR(W)
900
SPL(dB)
88
IMP(Ohm)
2x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.

Thiele-Small Parameters

Fs(Hz)
34
Vas(l)
80
Qts
0.71
Qms
12.2
Qes
0.754
Bl(Tm)
15.5
Mms(gr)
267
Cms(mm/N)
0.082
Rms(kg/s)
4.68
Le(mH)
0
Re(Ohm)
3.2
Sd(sq.mm)
83000
Vd(l)
1.328
X-max(mm)
16
X-mech(mm)
0

General Parameters

Diameter (inch)
15
Max Power(W.)
900
RMS Power(W.)
450
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.4
Sensitivity(dB) 1-W
88
Sensitivity(dB) 2.8-V
91.5

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
354
Mounting Depth (mm)
168
Magnet Diameter (mm)
0

Optimum Enclosures

Enclosures
Closed, BP4

Speaker response
