Model

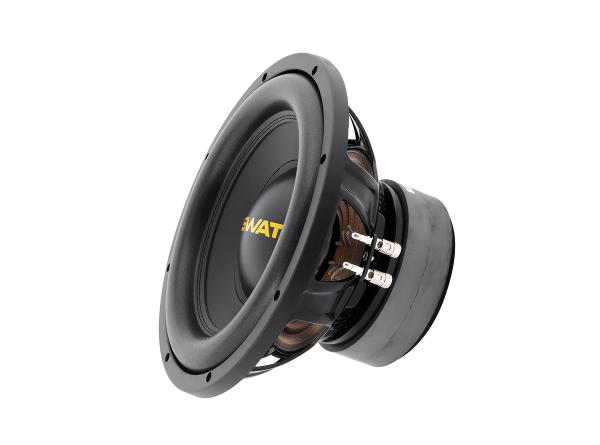

SWAT SBT-12
Rating
DIAM
12"
FS(Hz)
30
VAS(l)
51
QTS
0.43
PWR(W)
1300
SPL(dB)
86
IMP(Ohm)
2x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
30
Vas(l)
51
Qts
0.43
Qms
2.3
Qes
0.528
Bl(Tm)
17.8
Mms(gr)
180
Cms(mm/N)
0.156
Rms(kg/s)
14.78
Le(mH)
0
Re(Ohm)
3.8
Sd(sq.mm)
48000
Vd(l)
0.864
X-max(mm)
18
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
1300
RMS Power(W.)
650
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.32
Sensitivity(dB) 1-W
86
Sensitivity(dB) 2.8-V
90
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
284
Mounting Depth (mm)
166
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
