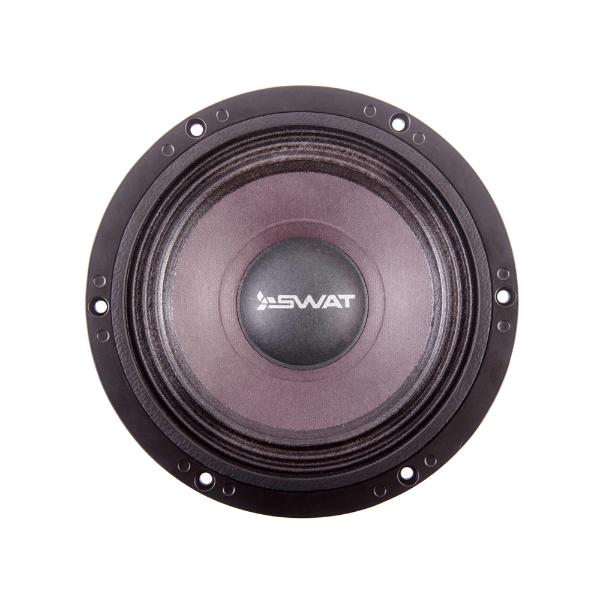

SWAT SP PRO-GR88
SWAT SP PRO-GR88
Model

SWAT SP PRO-GR88

Rating
DIAM
8"
FS(Hz)
77
VAS(l)
8.8
QTS
0.46
PWR(W)
400
SPL(dB)
91.1
IMP(Ohm)
8x1
avb
PROD

Thiele-Small Parameters

Fs(Hz)
77
Vas(l)
8.8
Qts
0.46
Qms
12.2
Qes
0.48
Bl(Tm)
0
Mms(gr)
24
Cms(mm/N)
0.18
Rms(kg/s)
0.94
Le(mH)
0
Re(Ohm)
0
Sd(sq.mm)
18600
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0

General Parameters

Diameter (inch)
8
Max Power(W.)
400
RMS Power(W.)
180
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
91.1
Sensitivity(dB) 2.8-V
0

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
186
Mounting Depth (mm)
81
Magnet Diameter (mm)
0

Optimum Enclosures

Enclosures
Vented, BP6

Speaker response
