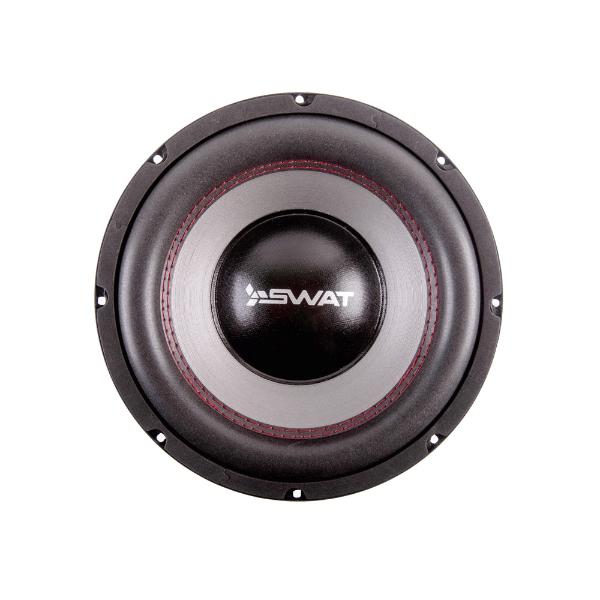

SWAT SW M10
SWAT SW M10
Model

SWAT SW M10

Rating
DIAM
10"
FS(Hz)
49
VAS(l)
35.5
QTS
1.07
PWR(W)
300
SPL(dB)
86.1
IMP(Ohm)
4x1
avb
PROD

Thiele-Small Parameters

Fs(Hz)
49
Vas(l)
35.5
Qts
1.069
Qms
3.354
Qes
1.569
Bl(Tm)
0
Mms(gr)
0
Cms(mm/N)
0
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
0
Sd(sq.mm)
0
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0

General Parameters

Diameter (inch)
10
Max Power(W.)
300
RMS Power(W.)
150
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
86.1
Sensitivity(dB) 2.8-V
0

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
235
Mounting Depth (mm)
87
Magnet Diameter (mm)
0

Optimum Enclosures

Enclosures
Closed, BP4

Speaker response
