Model

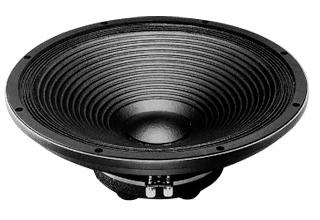

TAD TL-1801
Rating
DIAM
18"
FS(Hz)
26
VAS(l)
500
QTS
0.37
PWR(W)
800
SPL(dB)
95.4
IMP(Ohm)
8x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
26
Vas(l)
500
Qts
0.37
Qms
7.9
Qes
0.39
Bl(Tm)
21
Mms(gr)
158
Cms(mm/N)
0.237
Rms(kg/s)
3.27
Le(mH)
2
Re(Ohm)
6.6
Sd(sq.mm)
12200
Vd(l)
0.092
X-max(mm)
8
X-mech(mm)
20
General Parameters
Diameter (inch)
18
Max Power(W.)
800
RMS Power(W.)
800
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
2.17
Sensitivity(dB) 1-W
95.4
Sensitivity(dB) 2.8-V
96.2
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6P
