Model

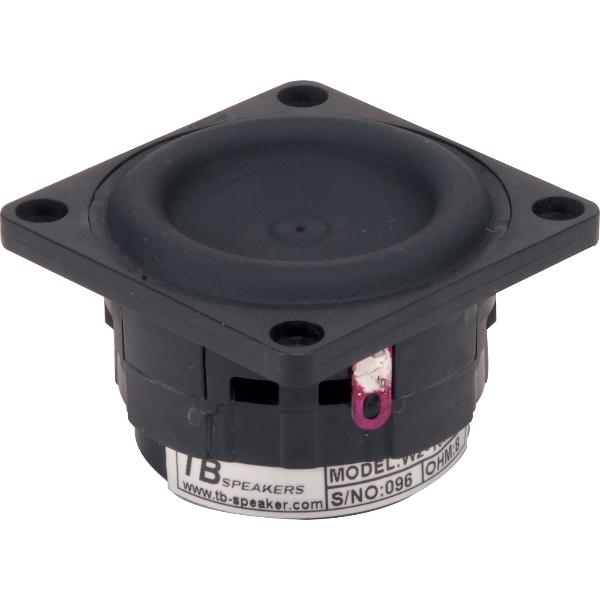

Tang Band W2-1625SA
Rating
DIAM
2"
FS(Hz)
90
VAS(l)
0.3
QTS
0.31
PWR(W)
40
SPL(dB)
80.2
IMP(Ohm)
86x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
90
Vas(l)
0.3
Qts
0.31
Qms
3.94
Qes
0.33
Bl(Tm)
5.2
Mms(gr)
2
Cms(mm/N)
1.376
Rms(kg/s)
0.33
Le(mH)
0.215
Re(Ohm)
6.6
Sd(sq.mm)
1263
Vd(l)
0.003
X-max(mm)
2
X-mech(mm)
0
General Parameters
Diameter (inch)
2
Max Power(W.)
40
RMS Power(W.)
20
Number of Coils
1
Impedance Z-Nom(Ohm)
86
Reference efficiency η0(%)
0.07
Sensitivity(dB) 1-W
80.2
Sensitivity(dB) 2.8-V
81.1
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
58
Cutout Diameter (mm)
53
Mounting Depth (mm)
31
Magnet Diameter (mm)
45
Optimum Enclosures
Enclosures
Vented, BP6
