Model

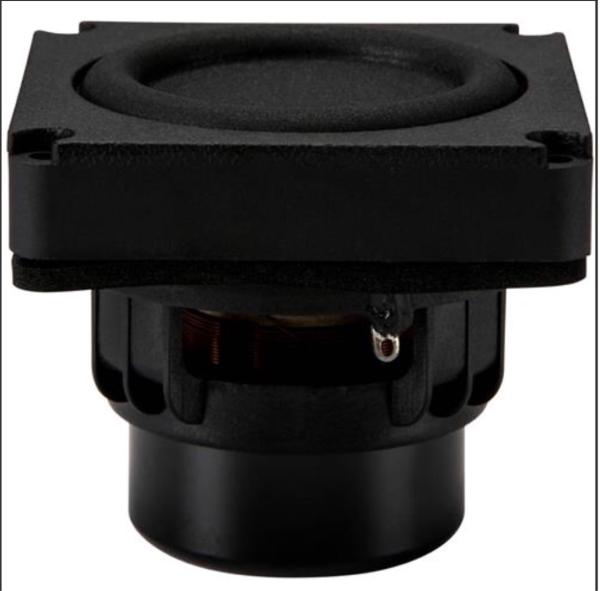

Tang Band W2-2040S
Rating
DIAM
2"
FS(Hz)
75
VAS(l)
0.2
QTS
0.26
PWR(W)
20
SPL(dB)
75.9
IMP(Ohm)
4x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
75
Vas(l)
0.2
Qts
0.26
Qms
5.21
Qes
0.28
Bl(Tm)
6.9
Mms(gr)
7
Cms(mm/N)
0.644
Rms(kg/s)
0.63
Le(mH)
0
Re(Ohm)
3.5
Sd(sq.mm)
1400
Vd(l)
0.007
X-max(mm)
5
X-mech(mm)
0
General Parameters
Diameter (inch)
2
Max Power(W.)
20
RMS Power(W.)
10
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.02
Sensitivity(dB) 1-W
75.9
Sensitivity(dB) 2.8-V
79.5
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
56
Mounting Depth (mm)
55
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6
