Model

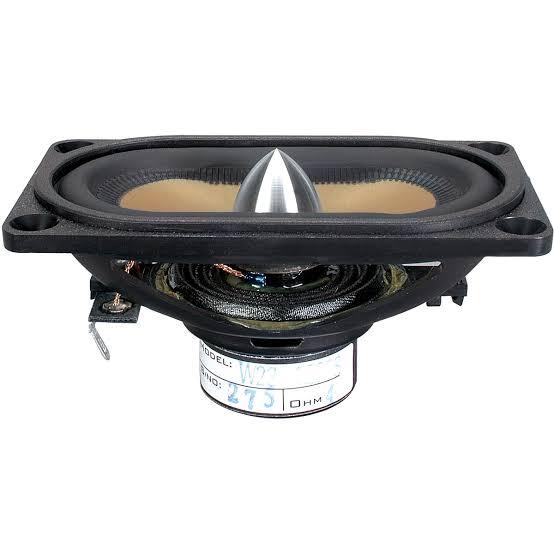

Tang Band W23-1287SI (2" X 3")
Rating
DIAM
2"
FS(Hz)
150
VAS(l)
0.8
QTS
0.6
PWR(W)
24
SPL(dB)
88
IMP(Ohm)
4x1
avb
UNK
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
150
Vas(l)
0.8
Qts
0.6
Qms
4.4
Qes
0.69
Bl(Tm)
2.6
Mms(gr)
2
Cms(mm/N)
0.73
Rms(kg/s)
0.33
Le(mH)
0.03
Re(Ohm)
3.6
Sd(sq.mm)
2900
Vd(l)
0.005
X-max(mm)
1
X-mech(mm)
0
General Parameters
Diameter (inch)
2
Max Power(W.)
24
RMS Power(W.)
12
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.4
Sensitivity(dB) 1-W
88
Sensitivity(dB) 2.8-V
91.5
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
70
Cutout Diameter (mm)
64
Mounting Depth (mm)
46
Magnet Diameter (mm)
30
Optimum Enclosures
Enclosures
Vented, BP6
