Model

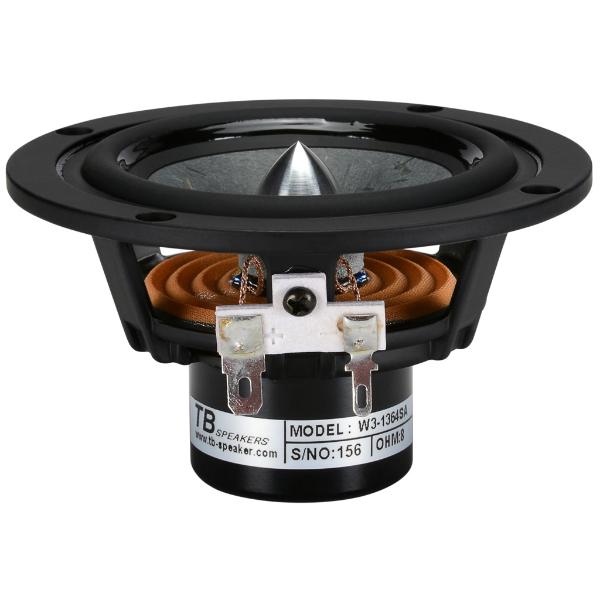

Tang Band W3-1364SA
Rating
DIAM
3"
FS(Hz)
105
VAS(l)
1.9
QTS
0.59
PWR(W)
25
SPL(dB)
86
IMP(Ohm)
8x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
105
Vas(l)
1.9
Qts
0.59
Qms
2.5
Qes
0.77
Bl(Tm)
3.1
Mms(gr)
2
Cms(mm/N)
1.296
Rms(kg/s)
0
Le(mH)
0.008
Re(Ohm)
6.6
Sd(sq.mm)
3200
Vd(l)
0.002
X-max(mm)
1
X-mech(mm)
0
General Parameters
Diameter (inch)
3
Max Power(W.)
25
RMS Power(W.)
12
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0.27
Sensitivity(dB) 1-W
86
Sensitivity(dB) 2.8-V
87.2
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6
