Model

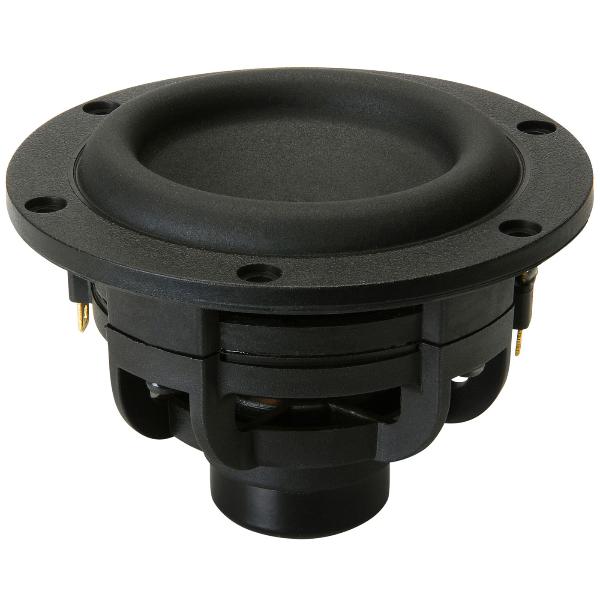

Tang Band W3-1876S
Rating
DIAM
3"
FS(Hz)
55
VAS(l)
0.8
QTS
0.43
PWR(W)
30
SPL(dB)
76
IMP(Ohm)
4x1
avb
UNK
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
55
Vas(l)
0.8
Qts
0.43
Qms
3.17
Qes
0.5
Bl(Tm)
5.3
Mms(gr)
11
Cms(mm/N)
0.737
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
3.6
Sd(sq.mm)
2700
Vd(l)
0.014
X-max(mm)
5
X-mech(mm)
0
General Parameters
Diameter (inch)
3
Max Power(W.)
30
RMS Power(W.)
15
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
76
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
75
Mounting Depth (mm)
57
Magnet Diameter (mm)
30
Optimum Enclosures
Enclosures
Vented, BP6
