Model

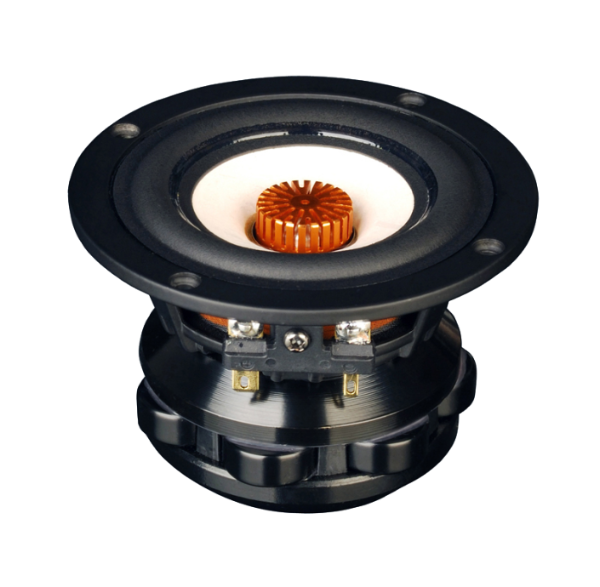

Tang Band W3-1878
Rating
DIAM
3"
FS(Hz)
75
VAS(l)
3.1
QTS
0.28
PWR(W)
25
SPL(dB)
87.7
IMP(Ohm)
8x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
75
Vas(l)
3.1
Qts
0.28
Qms
1.67
Qes
0.34
Bl(Tm)
4.3
Mms(gr)
2
Cms(mm/N)
2.117
Rms(kg/s)
0.56
Le(mH)
0.023
Re(Ohm)
6.5
Sd(sq.mm)
3203
Vd(l)
0.013
X-max(mm)
4
X-mech(mm)
0
General Parameters
Diameter (inch)
3
Max Power(W.)
25
RMS Power(W.)
12
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0.4
Sensitivity(dB) 1-W
87.7
Sensitivity(dB) 2.8-V
88.6
Mounting Information
Speaker Displacement (l)
0.3
Total Diameter (mm)
93
Cutout Diameter (mm)
76
Mounting Depth (mm)
65
Magnet Diameter (mm)
70
Optimum Enclosures
Enclosures
Vented, BP6
