Model

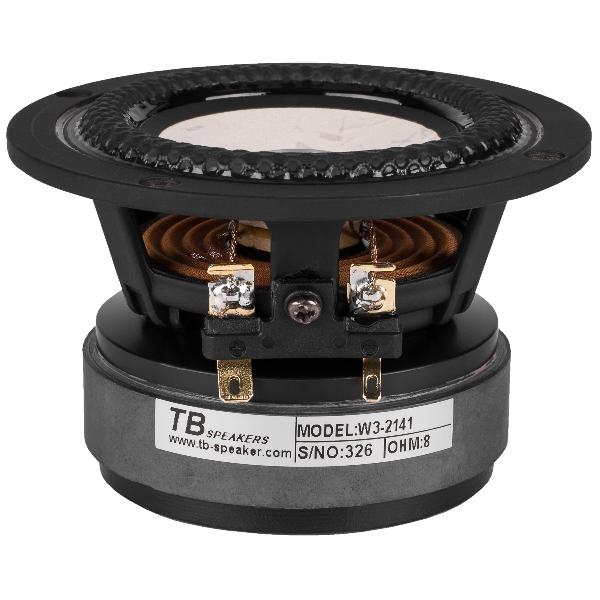

Tang Band W3 2141
Rating
DIAM
3"
FS(Hz)
75
VAS(l)
3.3
QTS
0.39
PWR(W)
50
SPL(dB)
86.6
IMP(Ohm)
8x1
avb
UNK
Thiele-Small Parameters
Fs(Hz)
75
Vas(l)
3.3
Qts
0.39
Qms
2.51
Qes
0.462
Bl(Tm)
3.6
Mms(gr)
2
Cms(mm/N)
2.256
Rms(kg/s)
0.375
Le(mH)
0
Re(Ohm)
6.5
Sd(sq.mm)
3212
Vd(l)
0.005
X-max(mm)
2
X-mech(mm)
0
General Parameters
Diameter (inch)
3
Max Power(W.)
50
RMS Power(W.)
25
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
86.6
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
75
Mounting Depth (mm)
55
Magnet Diameter (mm)
70
Optimum Enclosures
Enclosures
Vented, BP6
