Model

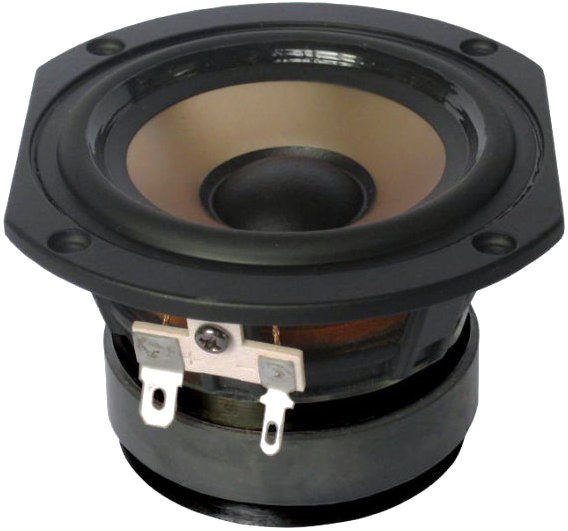

Tang Band W3-532SQF
Rating
DIAM
3"
FS(Hz)
100
VAS(l)
1.5
QTS
0.72
PWR(W)
25
SPL(dB)
84.3
IMP(Ohm)
8x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
100
Vas(l)
1.5
Qts
0.72
Qms
4.4
Qes
0.87
Bl(Tm)
3.2
Mms(gr)
2
Cms(mm/N)
1.057
Rms(kg/s)
0.29
Le(mH)
0.07
Re(Ohm)
6.6
Sd(sq.mm)
3205
Vd(l)
0.002
X-max(mm)
1
X-mech(mm)
0
General Parameters
Diameter (inch)
3
Max Power(W.)
25
RMS Power(W.)
12
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0.17
Sensitivity(dB) 1-W
84.3
Sensitivity(dB) 2.8-V
85.2
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
93
Cutout Diameter (mm)
75
Mounting Depth (mm)
50
Magnet Diameter (mm)
60
Optimum Enclosures
Enclosures
Vented, BP6
