Model

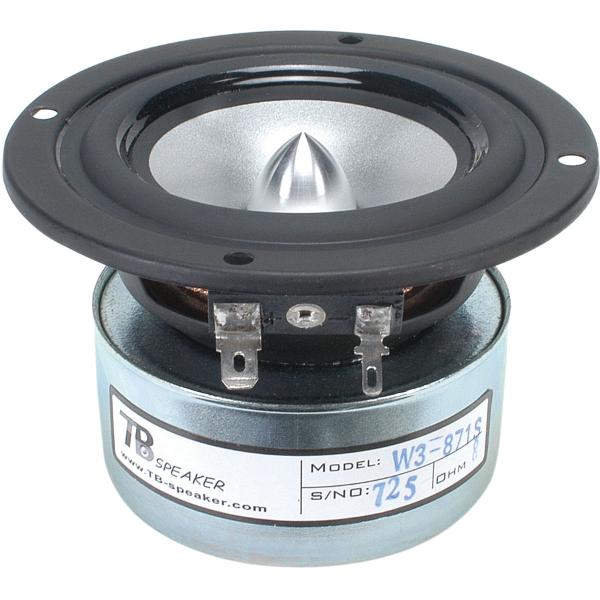

Tang Band W3-871SC
Rating
DIAM
3"
FS(Hz)
110
VAS(l)
1.6
QTS
0.59
PWR(W)
25
SPL(dB)
86.7
IMP(Ohm)
8x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
110
Vas(l)
1.6
Qts
0.59
Qms
3.4
Qes
0.714
Bl(Tm)
3.5
Mms(gr)
2
Cms(mm/N)
1.047
Rms(kg/s)
0.21
Le(mH)
0
Re(Ohm)
5.8
Sd(sq.mm)
3333
Vd(l)
0.002
X-max(mm)
1
X-mech(mm)
0
General Parameters
Diameter (inch)
3
Max Power(W.)
25
RMS Power(W.)
12
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
86.7
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
72
Mounting Depth (mm)
57
Magnet Diameter (mm)
68
Optimum Enclosures
Enclosures
Vented, BP6
