Model

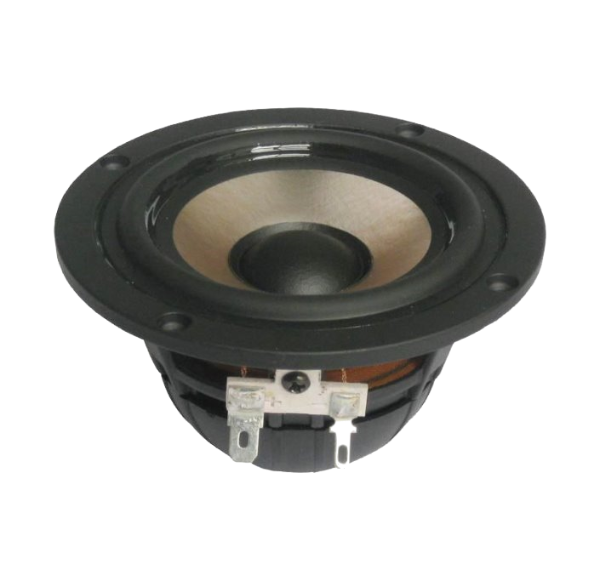

Tang Band W3-881SJ
Rating
DIAM
3"
FS(Hz)
100
VAS(l)
2.3
QTS
0.58
PWR(W)
30
SPL(dB)
87.5
IMP(Ohm)
8x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
100
Vas(l)
2.3
Qts
0.58
Qms
7.19
Qes
0.631
Bl(Tm)
3.3
Mms(gr)
2
Cms(mm/N)
1.31
Rms(kg/s)
0.152
Le(mH)
0.083
Re(Ohm)
6.6
Sd(sq.mm)
3526
Vd(l)
0.001
X-max(mm)
0
X-mech(mm)
0
General Parameters
Diameter (inch)
3
Max Power(W.)
30
RMS Power(W.)
15
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0.35
Sensitivity(dB) 1-W
87.5
Sensitivity(dB) 2.8-V
88.3
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
93
Cutout Diameter (mm)
75
Mounting Depth (mm)
45
Magnet Diameter (mm)
28
Optimum Enclosures
Enclosures
Vented, BP6
