Model

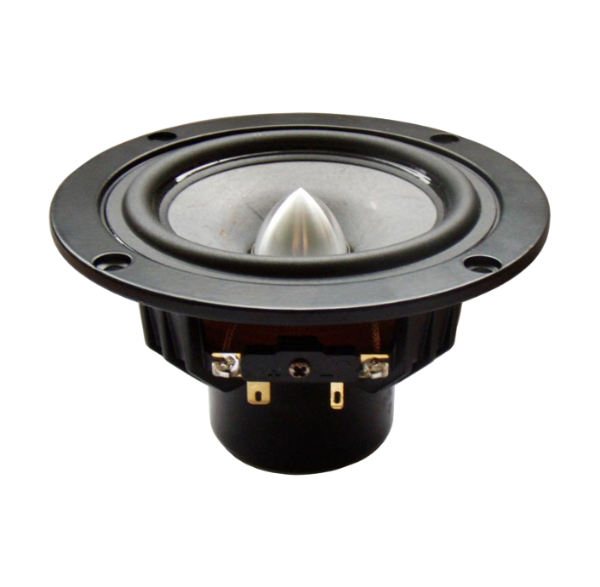

Tang Band W4-1320SI
Rating
DIAM
4"
FS(Hz)
75
VAS(l)
5.2
QTS
0.38
PWR(W)
50
SPL(dB)
88.5
IMP(Ohm)
8x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
75
Vas(l)
5.2
Qts
0.38
Qms
1.8
Qes
0.48
Bl(Tm)
5.1
Mms(gr)
4
Cms(mm/N)
1.129
Rms(kg/s)
1.04
Le(mH)
0.01
Re(Ohm)
6.8
Sd(sq.mm)
5715
Vd(l)
0.017
X-max(mm)
3
X-mech(mm)
0
General Parameters
Diameter (inch)
4
Max Power(W.)
50
RMS Power(W.)
25
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0.44
Sensitivity(dB) 1-W
88.5
Sensitivity(dB) 2.8-V
89.2
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
126
Cutout Diameter (mm)
96
Mounting Depth (mm)
65
Magnet Diameter (mm)
52
Optimum Enclosures
Enclosures
Vented, BP6
