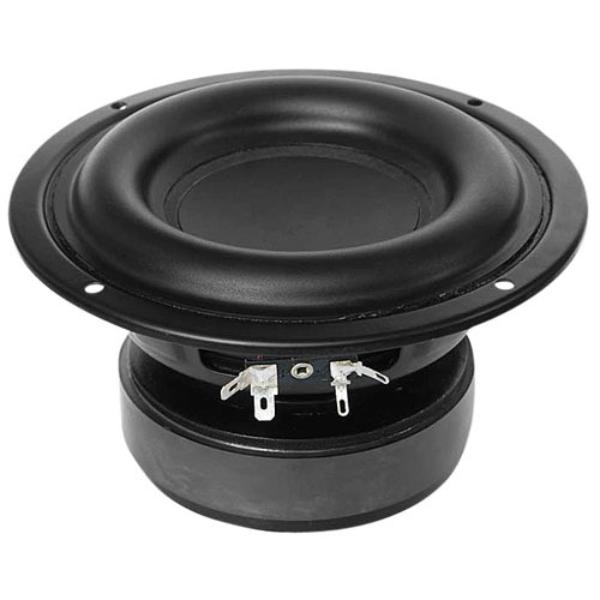

Tang Band W5-1138SMF
Tang Band W5-1138SMF
Model

Tang Band W5-1138SMF

Rating
Star iconStar iconStar iconStar iconStar icon
DIAM
5"
FS(Hz)
45
VAS(l)
4.8
QTS
0.49
PWR(W)
80
SPL(dB)
80.7
IMP(Ohm)
4x1
avb
PROD

Thiele-Small Parameters

Fs(Hz)
45
Vas(l)
4.8
Qts
0.49
Qms
3.56
Qes
0.57
Bl(Tm)
7.2
Cms(mm/N)
0.434
Rms(kg/s)
2.288
Le(mH)
0.34
Mms(gr)
29
Vd(l)
0.082
Sd(sq.mm)
8831
X-max(mm)
9
X-mech(mm)
0
Re(Ohm)
3.6

General Parameters

Diameter (inch)
5
Max Power(W.)
80
RMS Power(W.)
40
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.07
Sensitivity(dB) 1-W
80.7
Sensitivity(dB) 2.8-V
84.2

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
156
Cutout Diameter (mm)
120
Mounting Depth (mm)
81
Magnet Diameter (mm)
100

Optimum Enclosures

Enclosures
Closed, Vented, BP4, BP6
