Model

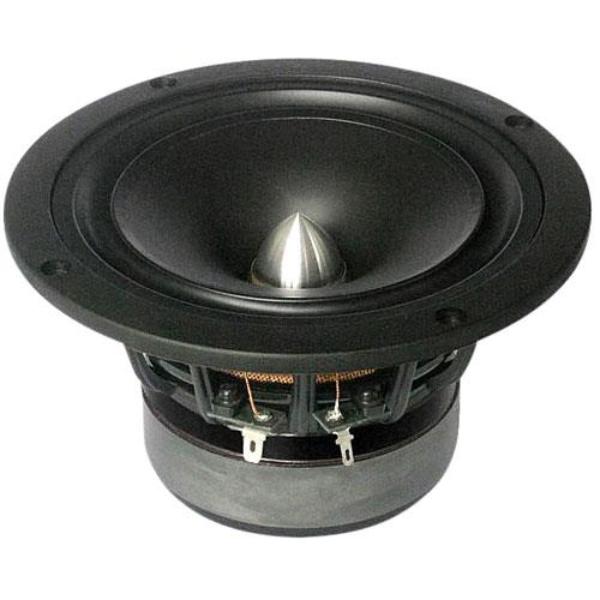

Tang Band W5-1611SAF
Rating
DIAM
5"
FS(Hz)
60
VAS(l)
11.6
QTS
0.44
PWR(W)
56
SPL(dB)
88.7
IMP(Ohm)
8x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
60
Vas(l)
11.6
Qts
0.44
Qms
2.8
Qes
0.52
Bl(Tm)
5.5
Mms(gr)
6
Cms(mm/N)
1.173
Rms(kg/s)
0.808
Le(mH)
0
Re(Ohm)
6.3
Sd(sq.mm)
9400
Vd(l)
0.028
X-max(mm)
3
X-mech(mm)
0
General Parameters
Diameter (inch)
5
Max Power(W.)
56
RMS Power(W.)
28
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0.46
Sensitivity(dB) 1-W
88.7
Sensitivity(dB) 2.8-V
89.7
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
131
Mounting Depth (mm)
81
Magnet Diameter (mm)
90
Optimum Enclosures
Enclosures
Vented, BP6
