Model

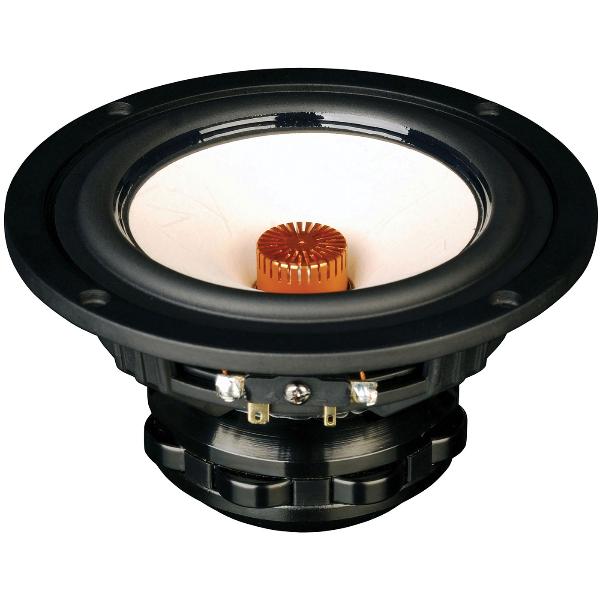

Tang Band W5-1880
Rating
DIAM
5"
FS(Hz)
48
VAS(l)
26.5
QTS
0.32
PWR(W)
60
SPL(dB)
88
IMP(Ohm)
8x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
48
Vas(l)
26.5
Qts
0.32
Qms
1.8
Qes
0.38
Bl(Tm)
5.5
Mms(gr)
7
Cms(mm/N)
2.11
Rms(kg/s)
1.2
Le(mH)
0.02
Re(Ohm)
6.3
Sd(sq.mm)
9400
Vd(l)
0.047
X-max(mm)
5
X-mech(mm)
0
General Parameters
Diameter (inch)
5
Max Power(W.)
60
RMS Power(W.)
30
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0.75
Sensitivity(dB) 1-W
88
Sensitivity(dB) 2.8-V
91.7
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
155
Cutout Diameter (mm)
122
Mounting Depth (mm)
78
Magnet Diameter (mm)
94
Optimum Enclosures
Enclosures
Vented, BP6
