Model

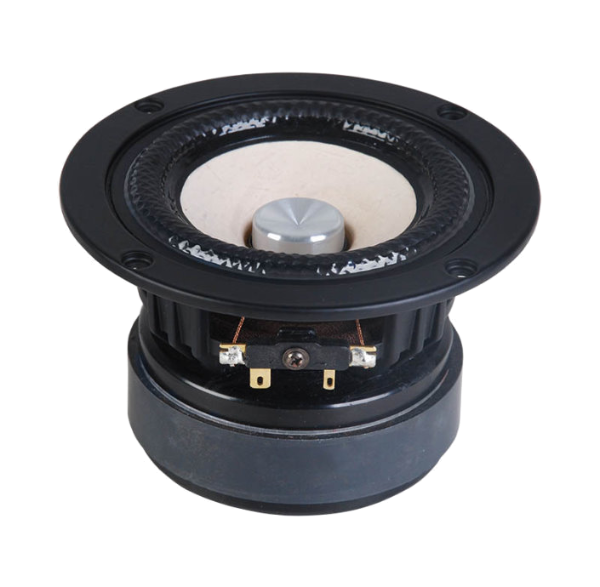

Tang Band W5-2143
Rating
DIAM
5"
FS(Hz)
55
VAS(l)
19
QTS
0.38
PWR(W)
60
SPL(dB)
90.5
IMP(Ohm)
8x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
55
Vas(l)
19
Qts
0.38
Qms
3.21
Qes
0.43
Bl(Tm)
5.4
Mms(gr)
6
Cms(mm/N)
1.398
Rms(kg/s)
0.645
Le(mH)
0.023
Re(Ohm)
6.3
Sd(sq.mm)
9400
Vd(l)
0.024
X-max(mm)
3
X-mech(mm)
0
General Parameters
Diameter (inch)
5
Max Power(W.)
60
RMS Power(W.)
30
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0.71
Sensitivity(dB) 1-W
90.5
Sensitivity(dB) 2.8-V
91.5
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
155
Cutout Diameter (mm)
123
Mounting Depth (mm)
77
Magnet Diameter (mm)
90
Optimum Enclosures
Enclosures
Vented, BP6
