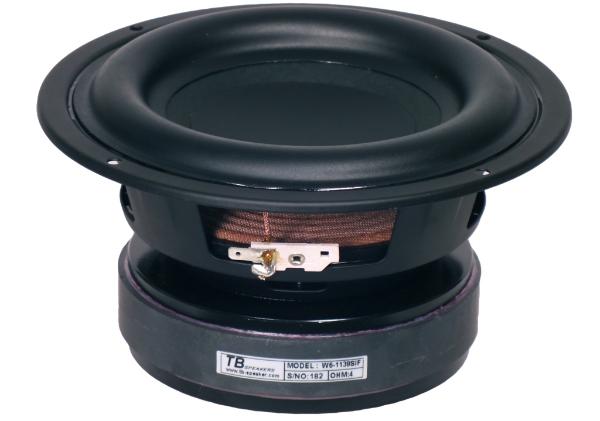

Tang Band W6-1139SIF
Tang Band W6-1139SIF
Model

Tang Band W6-1139SIF

Rating
DIAM
6"
FS(Hz)
35
VAS(l)
11.8
QTS
0.4
PWR(W)
100
SPL(dB)
83
IMP(Ohm)
4x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.

Thiele-Small Parameters

Fs(Hz)
35
Vas(l)
11.8
Qts
0.4
Qms
2.65
Qes
0.47
Bl(Tm)
8.5
Mms(gr)
40
Cms(mm/N)
0.6
Rms(kg/s)
3.32
Le(mH)
0
Re(Ohm)
3.8
Sd(sq.mm)
14000
Vd(l)
0.161
X-max(mm)
11
X-mech(mm)
0

General Parameters

Diameter (inch)
6
Max Power(W.)
100
RMS Power(W.)
50
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
83
Sensitivity(dB) 2.8-V
0

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
141
Mounting Depth (mm)
110
Magnet Diameter (mm)
0

Optimum Enclosures

Enclosures
Closed, Vented, BP4, BP6

Speaker response
