Model

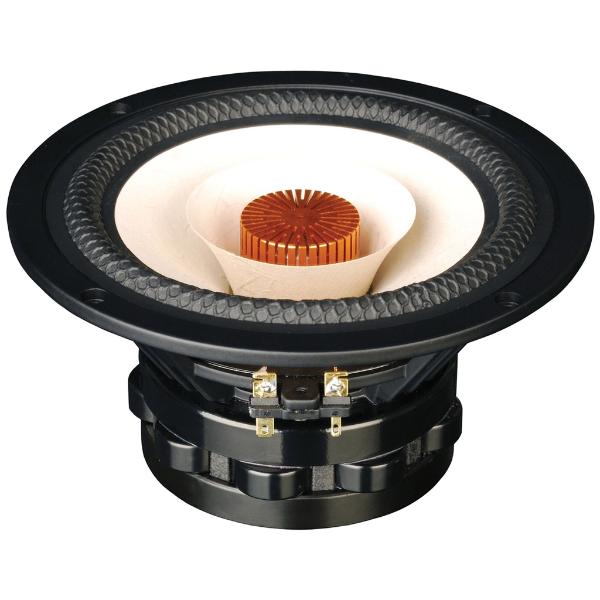

Tang Band W6-1916
Rating
DIAM
6"
FS(Hz)
60
VAS(l)
23.7
QTS
0.46
PWR(W)
60
SPL(dB)
91
IMP(Ohm)
8x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
60
Vas(l)
23.7
Qts
0.46
Qms
1.82
Qes
0.616
Bl(Tm)
5.8
Mms(gr)
8
Cms(mm/N)
0.851
Rms(kg/s)
1.719
Le(mH)
0
Re(Ohm)
23
Sd(sq.mm)
14000
Vd(l)
0.07
X-max(mm)
5
X-mech(mm)
0
General Parameters
Diameter (inch)
6
Max Power(W.)
60
RMS Power(W.)
30
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
91
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
147
Mounting Depth (mm)
89
Magnet Diameter (mm)
109
Optimum Enclosures
Enclosures
Vented, BP6
