Model

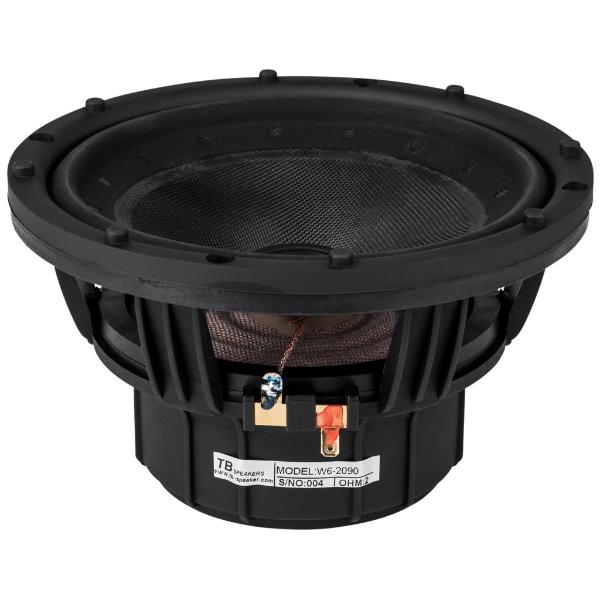

Tang Band W6-2090
Rating
DIAM
6"
FS(Hz)
50
VAS(l)
13.1
QTS
0.49
PWR(W)
60
SPL(dB)
86.6
IMP(Ohm)
2x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
50
Vas(l)
13.1
Qts
0.49
Qms
4.1
Qes
0.55
Bl(Tm)
4.1
Mms(gr)
17
Cms(mm/N)
0.613
Rms(kg/s)
0.037
Le(mH)
0.45
Re(Ohm)
1.8
Sd(sq.mm)
12280
Vd(l)
0.059
X-max(mm)
5
X-mech(mm)
0
General Parameters
Diameter (inch)
6
Max Power(W.)
60
RMS Power(W.)
30
Number of Coils
1
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.29
Sensitivity(dB) 1-W
86.6
Sensitivity(dB) 2.8-V
93.1
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
165
Cutout Diameter (mm)
146
Mounting Depth (mm)
83
Magnet Diameter (mm)
98
Optimum Enclosures
Enclosures
Vented, BP6
