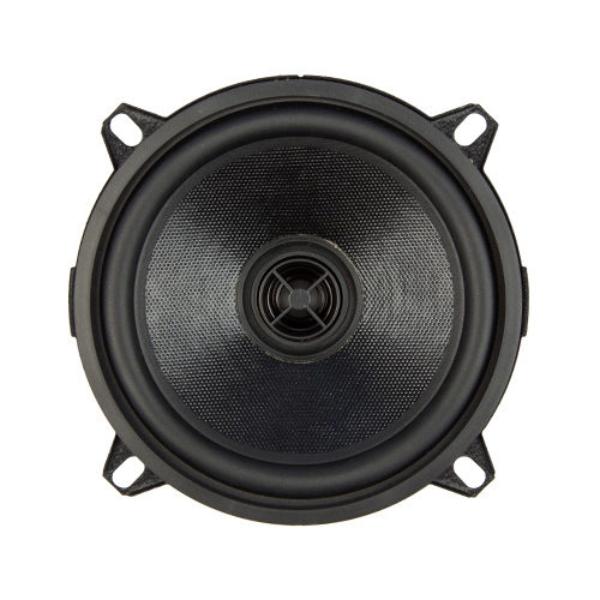

URAL AK-47
URAL AK-47
Model

URAL AK-47

Rating
DIAM
5"
FS(Hz)
56
VAS(l)
3.5
QTS
0.8
PWR(W)
170
SPL(dB)
90
IMP(Ohm)
4x1
avb
PROD

Thiele-Small Parameters

Fs(Hz)
56
Vas(l)
3.5
Qts
0.8
Qms
0
Qes
0
Bl(Tm)
0
Mms(gr)
0
Cms(mm/N)
0
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
0
Sd(sq.mm)
0
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0

General Parameters

Diameter (inch)
5
Max Power(W.)
170
RMS Power(W.)
85
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
90
Sensitivity(dB) 2.8-V
0

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
115
Mounting Depth (mm)
60
Magnet Diameter (mm)
0

Optimum Enclosures

Enclosures
Closed, Vented, BP4, BP6

Speaker response
