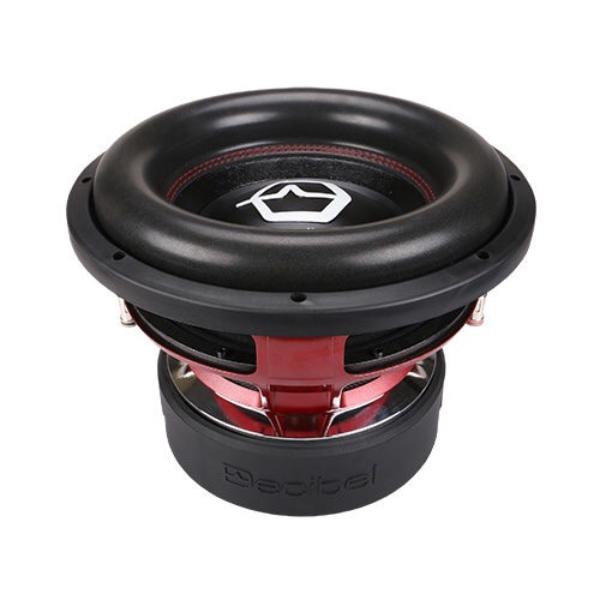

URAL DECIBEL 12
URAL DECIBEL 12
Model

URAL DECIBEL 12

Rating
DIAM
12"
FS(Hz)
24.1
VAS(l)
37.9
QTS
0.42
PWR(W)
7000
SPL(dB)
82.5
IMP(Ohm)
1x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.

Thiele-Small Parameters

Fs(Hz)
24.1
Vas(l)
37.9
Qts
0.42
Qms
5.39
Qes
0.455
Bl(Tm)
14.7
Mms(gr)
328
Cms(mm/N)
0.133
Rms(kg/s)
9.218
Le(mH)
0
Re(Ohm)
2
Sd(sq.mm)
44825
Vd(l)
1.748
X-max(mm)
39
X-mech(mm)
0

General Parameters

Diameter (inch)
12
Max Power(W.)
7000
RMS Power(W.)
3500
Number of Coils
2
Impedance Z-Nom(Ohm)
1
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
82.5
Sensitivity(dB) 2.8-V
0

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
282
Mounting Depth (mm)
206
Magnet Diameter (mm)
0

Optimum Enclosures

Enclosures
Closed, BP4

Speaker response
