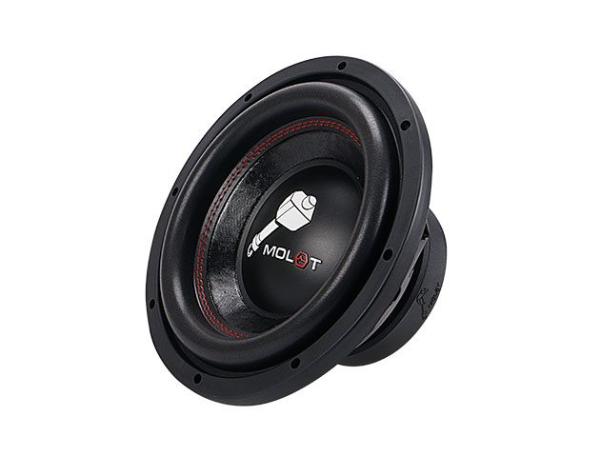

URAL MOLOT 10
URAL MOLOT 10
Model

URAL MOLOT 10

Rating
DIAM
10"
FS(Hz)
35.6
VAS(l)
22.9
QTS
0.54
PWR(W)
600
SPL(dB)
84.2
IMP(Ohm)
2x2
avb
PROD

Thiele-Small Parameters

Fs(Hz)
35.6
Vas(l)
22.9
Qts
0.54
Qms
5.96
Qes
0.594
Bl(Tm)
14.8
Cms(mm/N)
0.136
Rms(kg/s)
5.517
Le(mH)
0
Mms(gr)
147
Vd(l)
0.241
Sd(sq.mm)
34456
X-max(mm)
7
X-mech(mm)
0
Re(Ohm)
4

General Parameters

Diameter (inch)
10
Max Power(W.)
600
RMS Power(W.)
300
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.17
Sensitivity(dB) 1-W
84.2
Sensitivity(dB) 2.8-V
87.3

Mounting Information

Speaker Displacement (l)
3.88
Total Diameter (mm)
280
Cutout Diameter (mm)
230
Mounting Depth (mm)
125
Magnet Diameter (mm)
135

Optimum Enclosures

Enclosures
Closed, Vented, BP4, BP6
