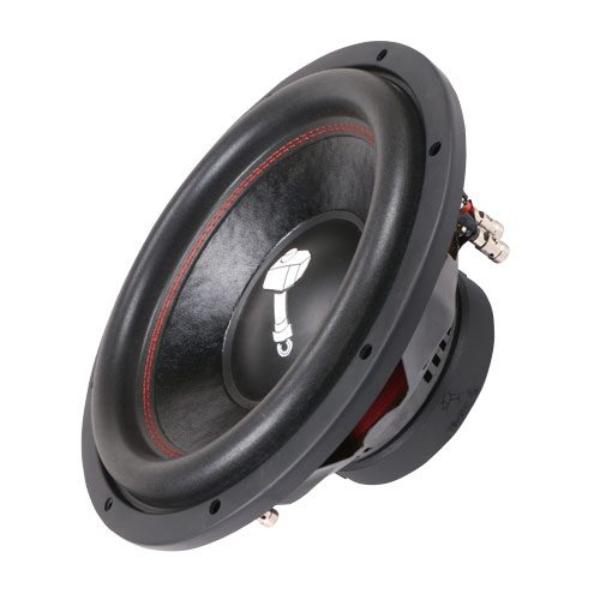

URAL MOLOT 12
URAL MOLOT 12
Model

URAL MOLOT 12

Rating
DIAM
12"
FS(Hz)
34.5
VAS(l)
43.1
QTS
0.88
PWR(W)
600
SPL(dB)
84.3
IMP(Ohm)
2x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.

Thiele-Small Parameters

Fs(Hz)
34.5
Vas(l)
43.1
Qts
0.88
Qms
6.96
Qes
1.01
Bl(Tm)
12.4
Mms(gr)
180
Cms(mm/N)
0.118
Rms(kg/s)
5.612
Le(mH)
0
Re(Ohm)
4
Sd(sq.mm)
50748
Vd(l)
0.355
X-max(mm)
7
X-mech(mm)
0

General Parameters

Diameter (inch)
12
Max Power(W.)
600
RMS Power(W.)
300
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.17
Sensitivity(dB) 1-W
84.3
Sensitivity(dB) 2.8-V
87.3

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0

Optimum Enclosures

Enclosures
Closed, BP4

Speaker response
