Model

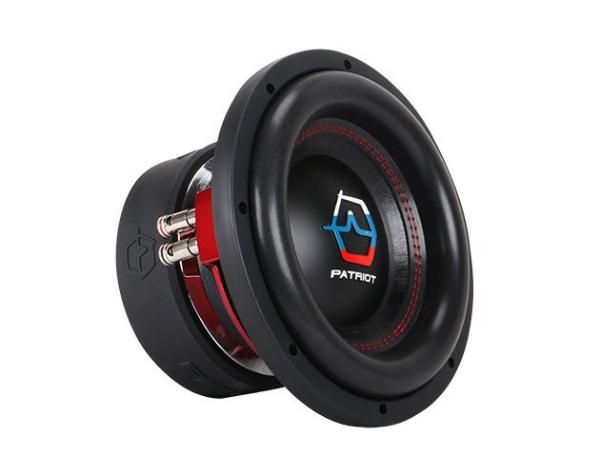

URAL PATRIOT 10
Rating
DIAM
10"
FS(Hz)
33.5
VAS(l)
17
QTS
0.44
PWR(W)
2400
SPL(dB)
83.1
IMP(Ohm)
4x2
avb
PROD
Thiele-Small Parameters
Fs(Hz)
33.5
Vas(l)
17
Qts
0.437
Qms
4.878
Qes
0.48
Bl(Tm)
18.8
Mms(gr)
202
Cms(mm/N)
0.112
Rms(kg/s)
8.695
Le(mH)
0
Re(Ohm)
4
Sd(sq.mm)
32714
Vd(l)
0.638
X-max(mm)
20
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
2400
RMS Power(W.)
1200
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.13
Sensitivity(dB) 1-W
83.1
Sensitivity(dB) 2.8-V
86.1
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
