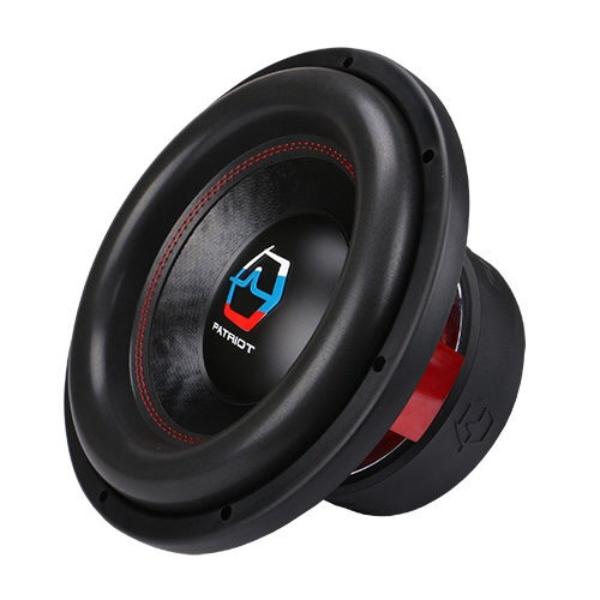

URAL PATRIOT 12
URAL PATRIOT 12
Model

URAL PATRIOT 12

Rating
DIAM
12"
FS(Hz)
27.2
VAS(l)
27.6
QTS
0.32
PWR(W)
3000
SPL(dB)
83.9
IMP(Ohm)
2x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.

Thiele-Small Parameters

Fs(Hz)
27.2
Vas(l)
27.6
Qts
0.32
Qms
3.97
Qes
0.348
Bl(Tm)
26.5
Mms(gr)
355
Cms(mm/N)
0.096
Rms(kg/s)
15.291
Le(mH)
0
Re(Ohm)
4
Sd(sq.mm)
45024
Vd(l)
1.126
X-max(mm)
25
X-mech(mm)
0

General Parameters

Diameter (inch)
12
Max Power(W.)
3000
RMS Power(W.)
1500
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
83.9
Sensitivity(dB) 2.8-V
0

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
284
Mounting Depth (mm)
165
Magnet Diameter (mm)
0

Optimum Enclosures

Enclosures
Closed, Vented, BP4, BP6

Speaker response
