Model

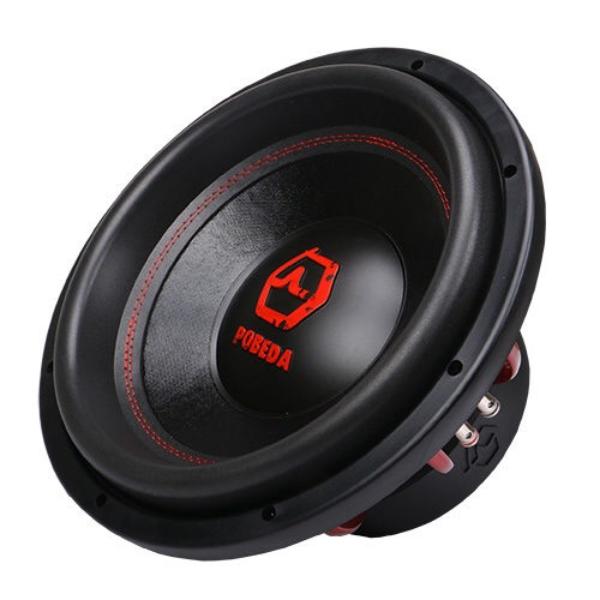

URAL POBEDA 12
Rating
DIAM
12"
FS(Hz)
35.2
VAS(l)
25.7
QTS
0.42
PWR(W)
2400
SPL(dB)
85.6
IMP(Ohm)
2x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
35.2
Vas(l)
25.7
Qts
0.42
Qms
4.2
Qes
0.467
Bl(Tm)
22.5
Mms(gr)
269
Cms(mm/N)
0.076
Rms(kg/s)
14.186
Le(mH)
0
Re(Ohm)
4
Sd(sq.mm)
48830
Vd(l)
1.221
X-max(mm)
25
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
2400
RMS Power(W.)
1200
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
85.6
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
282
Mounting Depth (mm)
145
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
BP4, BP6P, Closed, Vented
