Model

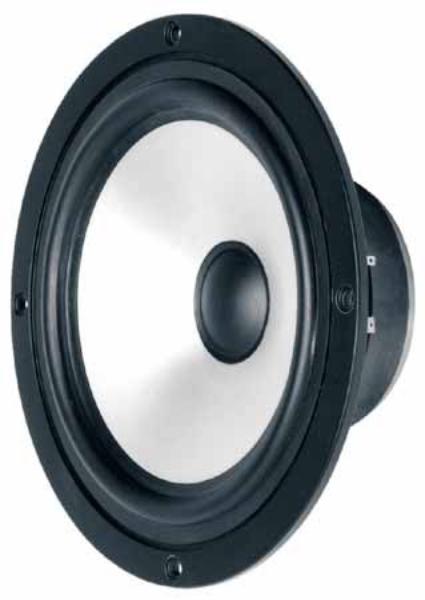

Visaton AL 170
Rating
DIAM
6"
FS(Hz)
38
VAS(l)
34
QTS
0.39
PWR(W)
100
SPL(dB)
88.2
IMP(Ohm)
8x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
38
Vas(l)
34
Qts
0.39
Qms
3.9
Qes
0.43
Bl(Tm)
6.9
Mms(gr)
13
Cms(mm/N)
1.349
Rms(kg/s)
0.8
Le(mH)
0.9
Re(Ohm)
5.6
Sd(sq.mm)
13331
Vd(l)
0.147
X-max(mm)
11
X-mech(mm)
0
General Parameters
Diameter (inch)
6
Max Power(W.)
100
RMS Power(W.)
70
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0.42
Sensitivity(dB) 1-W
88.2
Sensitivity(dB) 2.8-V
89.8
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
180
Cutout Diameter (mm)
148
Mounting Depth (mm)
63
Magnet Diameter (mm)
85
Optimum Enclosures
Enclosures
Vented, BP6
