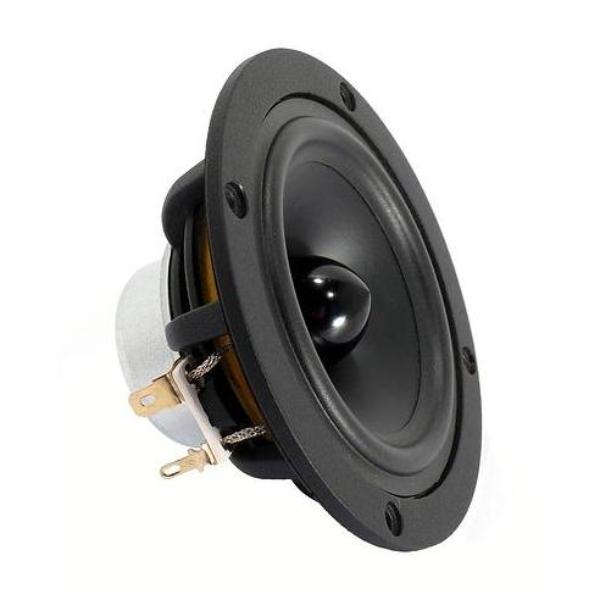

Visaton B80/8
Visaton B80/8
Model

Visaton B80/8

Rating
DIAM
3"
FS(Hz)
110
VAS(l)
1.8
QTS
0.63
PWR(W)
50
SPL(dB)
87.2
IMP(Ohm)
8x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.

Thiele-Small Parameters

Fs(Hz)
110
Vas(l)
1.8
Qts
0.63
Qms
6.5
Qes
0.69
Bl(Tm)
4.2
Mms(gr)
3
Cms(mm/N)
0.748
Rms(kg/s)
0.298
Le(mH)
0
Re(Ohm)
6.6
Sd(sq.mm)
3850
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0

General Parameters

Diameter (inch)
3
Max Power(W.)
50
RMS Power(W.)
30
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0.33
Sensitivity(dB) 1-W
87.2
Sensitivity(dB) 2.8-V
88

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
104
Cutout Diameter (mm)
87
Mounting Depth (mm)
46
Magnet Diameter (mm)
41

Optimum Enclosures

Enclosures
Vented, BP6

Speaker response
