Model

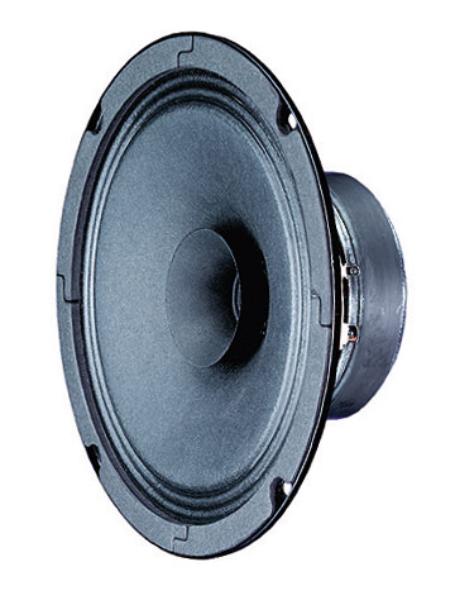

Visaton BG 17-8
Rating
DIAM
6"
FS(Hz)
120
VAS(l)
8.2
QTS
0.74
PWR(W)
60
SPL(dB)
93.4
IMP(Ohm)
8x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
120
Vas(l)
8.2
Qts
0.74
Qms
2.9
Qes
0.98
Bl(Tm)
5.7
Mms(gr)
7
Cms(mm/N)
0.271
Rms(kg/s)
1.67
Le(mH)
0.7
Re(Ohm)
6.5
Sd(sq.mm)
14606
Vd(l)
0.029
X-max(mm)
2
X-mech(mm)
0
General Parameters
Diameter (inch)
6
Max Power(W.)
60
RMS Power(W.)
40
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
1.39
Sensitivity(dB) 1-W
93.4
Sensitivity(dB) 2.8-V
94.3
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
165
Cutout Diameter (mm)
145
Mounting Depth (mm)
57
Magnet Diameter (mm)
80
Optimum Enclosures
Enclosures
Vented, BP6
