Model

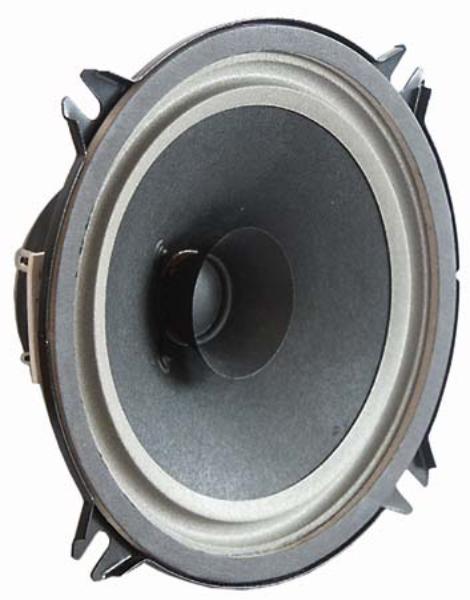

Visaton FR 13-4
Rating
DIAM
5"
FS(Hz)
100
VAS(l)
6.1
QTS
1.25
PWR(W)
50
SPL(dB)
87.5
IMP(Ohm)
4x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
100
Vas(l)
6.1
Qts
1.25
Qms
5.17
Qes
1.64
Bl(Tm)
2.3
Mms(gr)
5
Cms(mm/N)
0.563
Rms(kg/s)
0.547
Le(mH)
0.2
Re(Ohm)
3.1
Sd(sq.mm)
8700
Vd(l)
0.022
X-max(mm)
3
X-mech(mm)
0
General Parameters
Diameter (inch)
5
Max Power(W.)
50
RMS Power(W.)
30
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.36
Sensitivity(dB) 1-W
87.5
Sensitivity(dB) 2.8-V
91.7
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
129
Cutout Diameter (mm)
115
Mounting Depth (mm)
43
Magnet Diameter (mm)
60
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
