Model

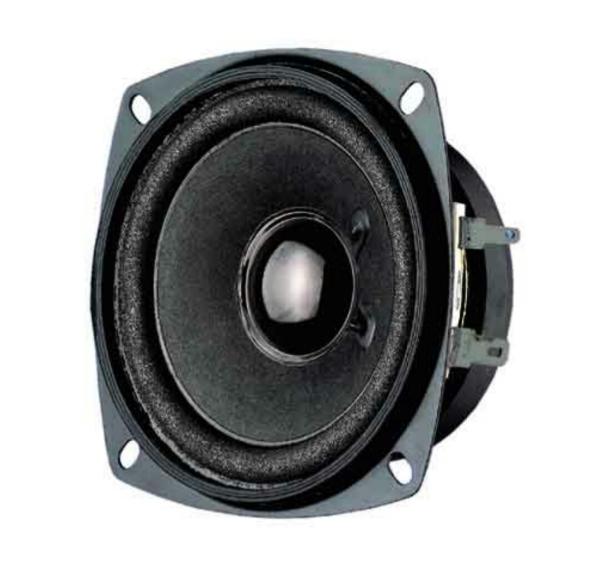

Visaton FR 8-8
Rating
DIAM
3"
FS(Hz)
150
VAS(l)
0.7
QTS
1.09
PWR(W)
15
SPL(dB)
84.2
IMP(Ohm)
8x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
150
Vas(l)
0.7
Qts
1.09
Qms
5.3
Qes
1.38
Bl(Tm)
2.5
Mms(gr)
2
Cms(mm/N)
0.662
Rms(kg/s)
0.302
Le(mH)
0.6
Re(Ohm)
5.4
Sd(sq.mm)
2731
Vd(l)
0.005
X-max(mm)
2
X-mech(mm)
0
General Parameters
Diameter (inch)
3
Max Power(W.)
15
RMS Power(W.)
10
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0.17
Sensitivity(dB) 1-W
84.2
Sensitivity(dB) 2.8-V
85.9
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
96
Cutout Diameter (mm)
75
Mounting Depth (mm)
37
Magnet Diameter (mm)
60
Optimum Enclosures
Enclosures
Vented, BP6
