Model

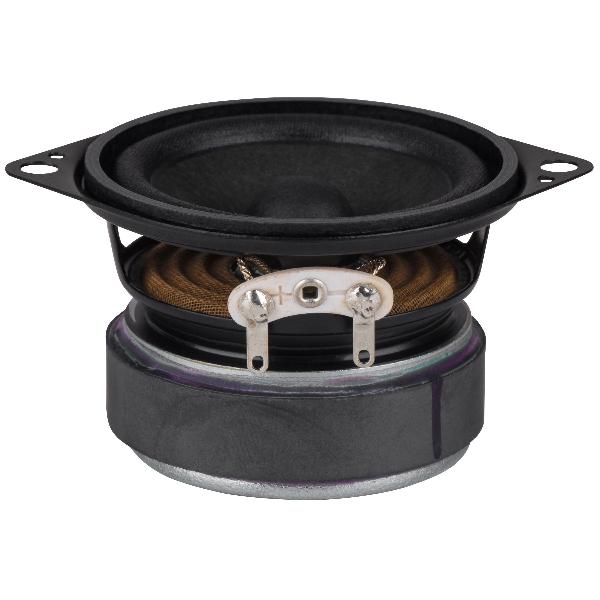

Visaton FRS 5X-8
Rating
DIAM
2"
FS(Hz)
190
VAS(l)
0.2
QTS
0.7
PWR(W)
8
SPL(dB)
84.4
IMP(Ohm)
8x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
190
Vas(l)
0.2
Qts
0.7
Qms
3.49
Qes
0.88
Bl(Tm)
2.7
Mms(gr)
1
Cms(mm/N)
1.002
Rms(kg/s)
0.239
Le(mH)
0
Re(Ohm)
7.7
Sd(sq.mm)
1245
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0
General Parameters
Diameter (inch)
2
Max Power(W.)
8
RMS Power(W.)
5
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
84.4
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
45
Mounting Depth (mm)
34
Magnet Diameter (mm)
45
Optimum Enclosures
Enclosures
Vented, BP6P
