Model

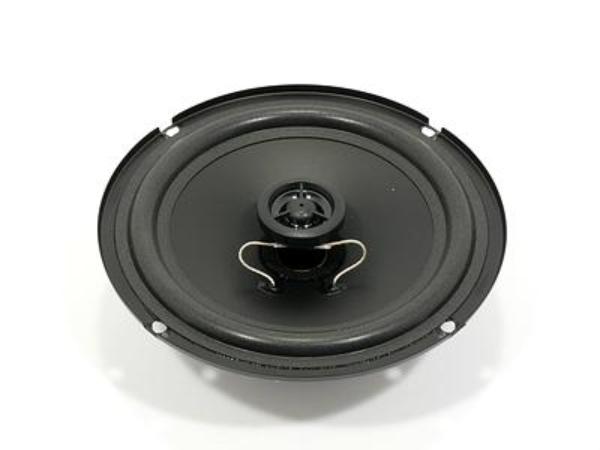

Visaton FX 16-4
Rating
DIAM
6"
FS(Hz)
105
VAS(l)
12
QTS
1.02
PWR(W)
60
SPL(dB)
86
IMP(Ohm)
0x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
105
Vas(l)
12
Qts
1.02
Qms
0
Qes
0
Bl(Tm)
0
Mms(gr)
0
Cms(mm/N)
0
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
0
Sd(sq.mm)
0
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0
General Parameters
Diameter (inch)
6
Max Power(W.)
60
RMS Power(W.)
40
Number of Coils
1
Impedance Z-Nom(Ohm)
0
Reference efficiency η0(%)
0.3
Sensitivity(dB) 1-W
86
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
165
Cutout Diameter (mm)
143
Mounting Depth (mm)
50
Magnet Diameter (mm)
80
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
