Model

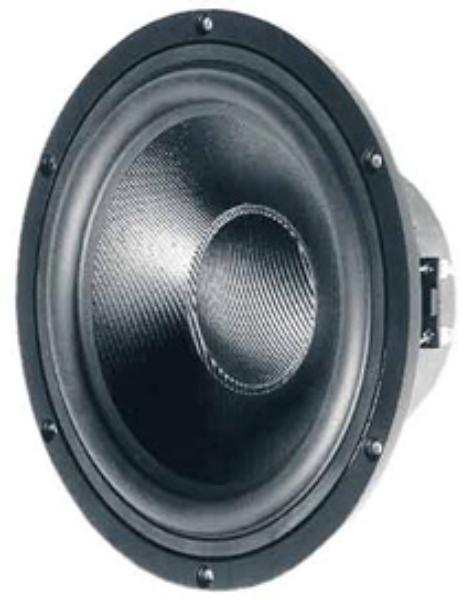

Visaton GF200-4
Rating
DIAM
8"
FS(Hz)
34
VAS(l)
62
QTS
0.77
PWR(W)
120
SPL(dB)
86
IMP(Ohm)
4x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
34
Vas(l)
62
Qts
0.77
Qms
4.51
Qes
0.93
Bl(Tm)
4.6
Mms(gr)
25
Cms(mm/N)
0.965
Rms(kg/s)
1.184
Le(mH)
0
Re(Ohm)
3.7
Sd(sq.mm)
21400
Vd(l)
0.128
X-max(mm)
6
X-mech(mm)
0
General Parameters
Diameter (inch)
8
Max Power(W.)
120
RMS Power(W.)
60
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.25
Sensitivity(dB) 1-W
86
Sensitivity(dB) 2.8-V
89.4
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
