Model

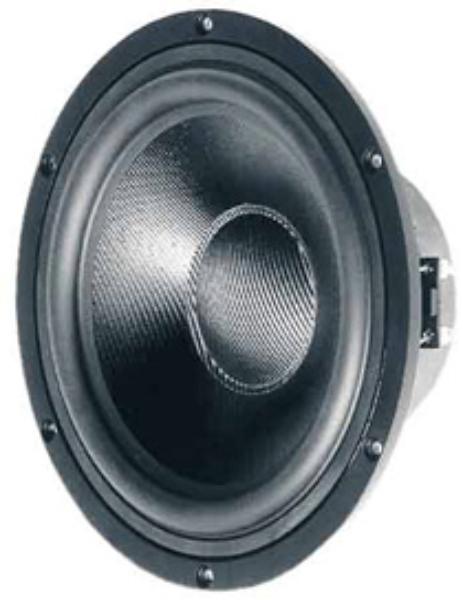

Visaton GF200-8
Rating
DIAM
8"
FS(Hz)
30
VAS(l)
68
QTS
0.34
PWR(W)
120
SPL(dB)
88.8
IMP(Ohm)
8x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
30
Vas(l)
68
Qts
0.34
Qms
4.12
Qes
0.37
Bl(Tm)
9.2
Mms(gr)
25
Cms(mm/N)
1.058
Rms(kg/s)
1.144
Le(mH)
0
Re(Ohm)
6.7
Sd(sq.mm)
21400
Vd(l)
0.128
X-max(mm)
6
X-mech(mm)
0
General Parameters
Diameter (inch)
8
Max Power(W.)
120
RMS Power(W.)
60
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0.48
Sensitivity(dB) 1-W
88.8
Sensitivity(dB) 2.8-V
89.6
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6P
