Model

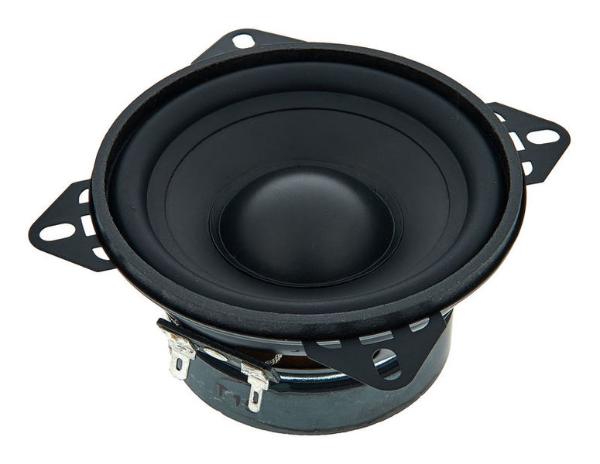

Visaton KT100V
Rating
DIAM
4"
FS(Hz)
37
VAS(l)
9.8
QTS
0.43
PWR(W)
40
SPL(dB)
81.5
IMP(Ohm)
4x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
37
Vas(l)
9.8
Qts
0.43
Qms
2.22
Qes
0.54
Bl(Tm)
3.4
Mms(gr)
8
Cms(mm/N)
2.387
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
3.6
Sd(sq.mm)
5410
Vd(l)
0.011
X-max(mm)
2
X-mech(mm)
0
General Parameters
Diameter (inch)
4
Max Power(W.)
40
RMS Power(W.)
25
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.09
Sensitivity(dB) 1-W
81.5
Sensitivity(dB) 2.8-V
84.9
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
99
Cutout Diameter (mm)
92
Mounting Depth (mm)
52
Magnet Diameter (mm)
70
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
