Model

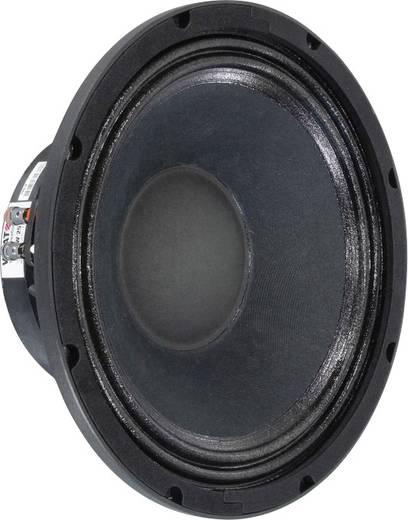

Visaton PAW 25/8
Rating
DIAM
10"
FS(Hz)
52
VAS(l)
44
QTS
0.33
PWR(W)
450
SPL(dB)
94.4
IMP(Ohm)
8x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
52
Vas(l)
44
Qts
0.33
Qms
9.59
Qes
0.34
Bl(Tm)
15.6
Mms(gr)
38
Cms(mm/N)
0.249
Rms(kg/s)
1.281
Le(mH)
0.9
Re(Ohm)
6.7
Sd(sq.mm)
35298
Vd(l)
0.124
X-max(mm)
4
X-mech(mm)
8
General Parameters
Diameter (inch)
10
Max Power(W.)
450
RMS Power(W.)
300
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
1.75
Sensitivity(dB) 1-W
94.4
Sensitivity(dB) 2.8-V
95.1
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
264
Cutout Diameter (mm)
229
Mounting Depth (mm)
107
Magnet Diameter (mm)
145
Optimum Enclosures
Enclosures
Vented, BP6P
