Model

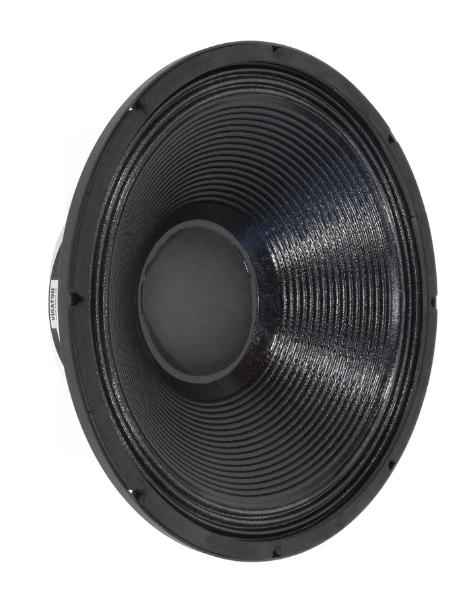

Visaton PAW 46-8
Rating
DIAM
18"
FS(Hz)
29
VAS(l)
325
QTS
0.36
PWR(W)
1000
SPL(dB)
95
IMP(Ohm)
8x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
29
Vas(l)
325
Qts
0.36
Qms
8.97
Qes
0.38
Bl(Tm)
23.3
Mms(gr)
186
Cms(mm/N)
0.162
Rms(kg/s)
3.778
Le(mH)
1.5
Re(Ohm)
6.1
Sd(sq.mm)
121000
Vd(l)
0.593
X-max(mm)
5
X-mech(mm)
0
General Parameters
Diameter (inch)
18
Max Power(W.)
1000
RMS Power(W.)
700
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
2.01
Sensitivity(dB) 1-W
95
Sensitivity(dB) 2.8-V
96.2
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
460
Cutout Diameter (mm)
422
Mounting Depth (mm)
187
Magnet Diameter (mm)
220
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
