Model

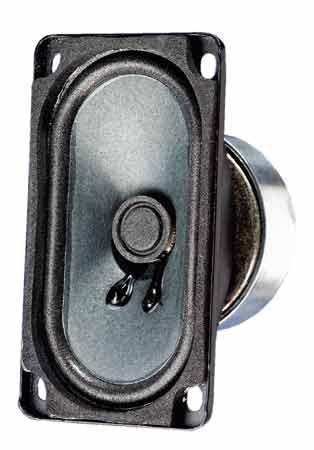

Visaton SC 5.9-8
Rating
DIAM
23"
FS(Hz)
193
VAS(l)
0.4
QTS
1.25
PWR(W)
15
SPL(dB)
84.7
IMP(Ohm)
8x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
193
Vas(l)
0.4
Qts
1.25
Qms
7.5
Qes
1.5
Bl(Tm)
2.5
Mms(gr)
2
Cms(mm/N)
0.453
Rms(kg/s)
0.24
Le(mH)
0.4
Re(Ohm)
5.2
Sd(sq.mm)
2495
Vd(l)
0.004
X-max(mm)
2
X-mech(mm)
0
General Parameters
Diameter (inch)
23
Max Power(W.)
15
RMS Power(W.)
10
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0.18
Sensitivity(dB) 1-W
84.7
Sensitivity(dB) 2.8-V
86.5
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6
