Model

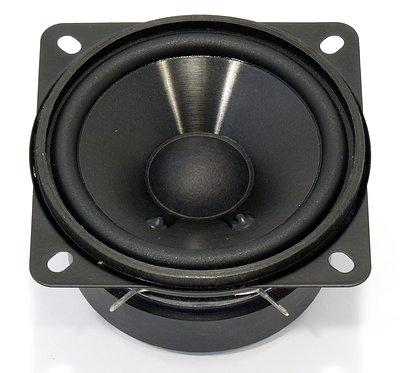

Visaton SL 87 FE-8
Rating
DIAM
3"
FS(Hz)
120
VAS(l)
1.5
QTS
0.65
PWR(W)
15
SPL(dB)
86.9
IMP(Ohm)
8x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
120
Vas(l)
1.5
Qts
0.65
Qms
3.3
Qes
0.82
Bl(Tm)
4
Mms(gr)
2
Cms(mm/N)
0.733
Rms(kg/s)
0.548
Le(mH)
0
Re(Ohm)
7.1
Sd(sq.mm)
37300
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0
General Parameters
Diameter (inch)
3
Max Power(W.)
15
RMS Power(W.)
10
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0.31
Sensitivity(dB) 1-W
86.9
Sensitivity(dB) 2.8-V
87.4
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
87
Cutout Diameter (mm)
80
Mounting Depth (mm)
49
Magnet Diameter (mm)
72
Optimum Enclosures
Enclosures
Vented, BP6
