Model

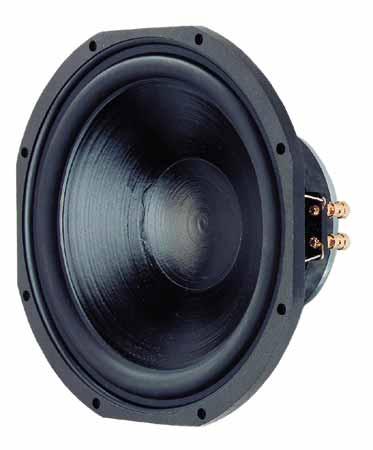

Visaton TIW 360X
Rating
DIAM
12"
FS(Hz)
21
VAS(l)
140
QTS
0.34
PWR(W)
600
SPL(dB)
87.3
IMP(Ohm)
8x1
avb
NOPROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
21
Vas(l)
140
Qts
0.34
Qms
3.7
Qes
0.37
Bl(Tm)
15.9
Mms(gr)
116
Cms(mm/N)
0.495
Rms(kg/s)
4.16
Le(mH)
2.6
Re(Ohm)
6.1
Sd(sq.mm)
45000
Vd(l)
0.563
X-max(mm)
13
X-mech(mm)
21
General Parameters
Diameter (inch)
12
Max Power(W.)
600
RMS Power(W.)
300
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0.34
Sensitivity(dB) 1-W
87.3
Sensitivity(dB) 2.8-V
88.5
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
295
Cutout Diameter (mm)
278
Mounting Depth (mm)
120
Magnet Diameter (mm)
156
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6P
