Model

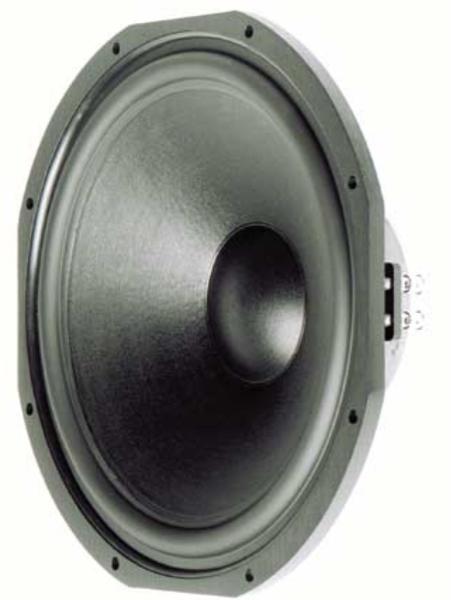

Visaton TIW 400-8
Rating
DIAM
15"
FS(Hz)
23
VAS(l)
300
QTS
0.35
PWR(W)
700
SPL(dB)
91.8
IMP(Ohm)
8x1
avb
NOPROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
23
Vas(l)
300
Qts
0.35
Qms
5.97
Qes
0.37
Bl(Tm)
17
Mms(gr)
120
Cms(mm/N)
0.399
Rms(kg/s)
2.905
Le(mH)
2.6
Re(Ohm)
5.8
Sd(sq.mm)
75500
Vd(l)
2.038
X-max(mm)
27
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
700
RMS Power(W.)
300
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0.95
Sensitivity(dB) 1-W
91.8
Sensitivity(dB) 2.8-V
93.2
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
375
Cutout Diameter (mm)
356
Mounting Depth (mm)
130
Magnet Diameter (mm)
156
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6P
