Model

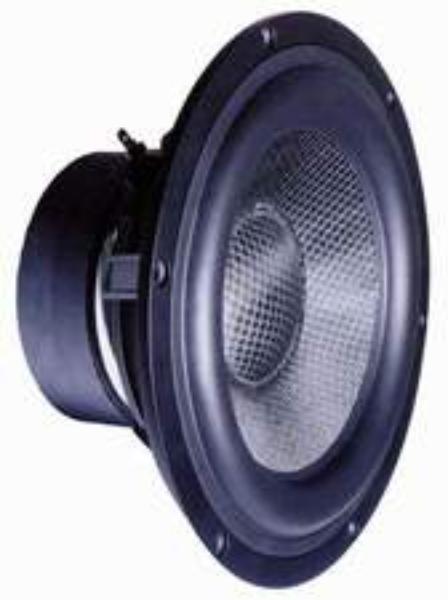

Visaton TIW200XS
Rating
DIAM
8"
FS(Hz)
30
VAS(l)
51.5
QTS
0.46
PWR(W)
120
SPL(dB)
86.3
IMP(Ohm)
8x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
30
Vas(l)
51.5
Qts
0.46
Qms
5.19
Qes
0.5
Bl(Tm)
8.5
Mms(gr)
33
Cms(mm/N)
0.865
Rms(kg/s)
1.199
Le(mH)
0
Re(Ohm)
5.8
Sd(sq.mm)
20600
Vd(l)
0.227
X-max(mm)
11
X-mech(mm)
0
General Parameters
Diameter (inch)
8
Max Power(W.)
120
RMS Power(W.)
60
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0.27
Sensitivity(dB) 1-W
86.3
Sensitivity(dB) 2.8-V
87.7
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
